KI-P00LM20F-SM
3.6 mm Fixed Lens @F1.6
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
دوربین مداربسته کی دی تی مدل KI-P00LM20F-SM
قابلیت های هوشمند:
- پشتیبانی از میکرو SD با ظرفیت 128Gb
- پشتیبـــانی از +H.264 / H.265
- پشتیبـــانـــی از ONVIF ورژن 2.6
- قابلیت WDR, BLC, HLC, Defog
KI-P00LM20F-SM

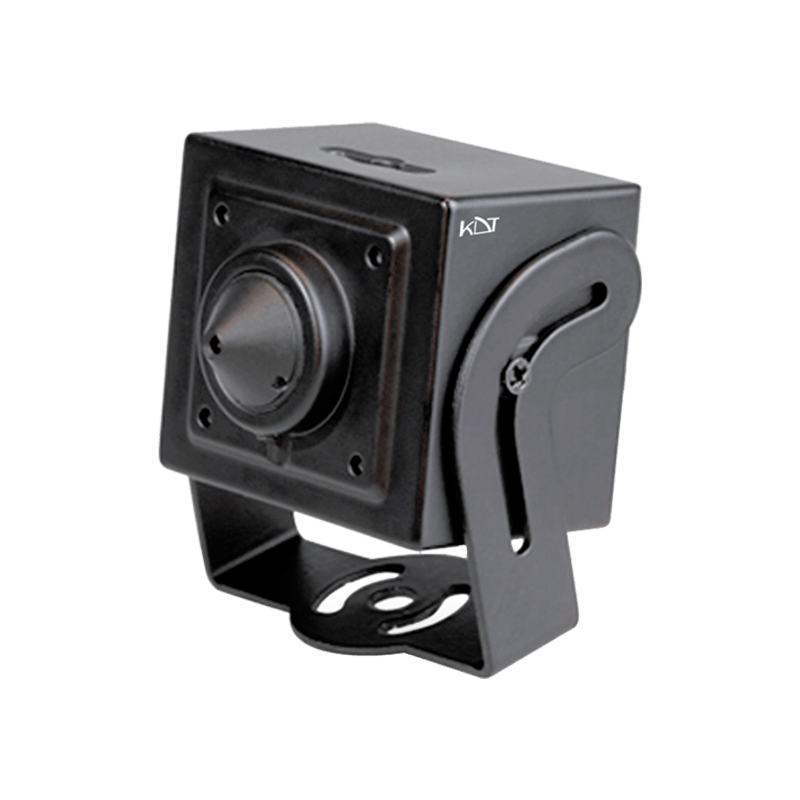

2MP Pin Hole Network Camera
- 2MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”)
- 3.6 mm Fixed Lens @F1.6
- H.264, H.265
- Dual-Core ARM Cortex-A7@900 MHz
- Triple Stream (Code Rate: 128 kb-8 mb)
- Dual-Core ARM Cortex-A7@900 MHz
- IP44
شرایط گارانتی :
- دو سال گارانتی نقره ای بدون قید و شرط کی دی تی
- سه سال ضمانت پایداری کیفیت تصویر
- شامل: آبخوردگی، شکستگی، ضربه دیدگی، خسارت ناشی از صاعقه، زنگ زدگی، نوسانات برق، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 2MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8″) |
| CPU | Dual-Core ARM Cortex-A7@900 MHz |
| Lens | 3.6 mm Fixed Lens @F1-6 |
| Resolution | 1920*1080 (2MP) |
| Available IR Range | N/A |
| D/N Filter | Yes-Image Algorithm |
| Min illumination | Color: 0-01 Lux(AGC on) – B/W: 0-001 Lux(AGC on) |
| Angle of View | H-FOV: 96°, V-FOV: 79°, D-FOV: 110° |
| Night Vision | Super Starlight Technology |
| Web Viewer | Internet Explorer |
| Smart Device | IOS, Android Phone & Tablet |
| Recording | |
| Recording | FTP, NVR, CMS,VMS, SD Card |
| Record Type | Manual, Motion Detection, Schedule |
| Alarm Triggers | N/A |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event | Motion Detection, Video Shelter |
| Intelligent Function | N/A |
| Picture Adjust | |
| Picture Function | 120dB WDR, DWDR, BLC, HLC, Defog, ROI |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto, Color on, Color off |
| S/N | N/A |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Network | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio in |
| Internal Audio | Internal Mic |
| Alarm | Alarm Out, Alarm In |
| CVBS | Yes |
| Power | DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (128 Gb Max) |
| Video / Audio | |
| Video Compression | H.264, H-265 |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 2MP(1920*1080), 30fps@ 960P |
| Transmission Stream | Triple Stream (Code Rate: 128 kbps-8 mbps) |
| Network | |
| Protocols | HTTPs, HTTP, TCP/IP V4-V6, RTSP, UDP, NTP, DHCP,DDNS, FTP, SNMP-V1-V2-V3, NAT |
| Compatibility | Onvif Ver2.6, Profile S, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | Internet Explorer |
| Smart Device | IOS, Android Phone & Tablet |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio in |
| Internal Audio | Internal Mic |
| Alarm | Alarm Out, Alarm In |
| CVBS | N/A |
| Power | DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (128 Gb Max) |
| General | |
| Protection Rating | IP44 |
| Power Supply | DC12 V ± 25% (1A Max) |
| POE Supply | N/A |
| Web Language | English, Persian |
| Dimension | 31*33*33 mm |
| Weight | 170 g |
| Operation Humidity | Max Up to 90%RH(Non Condensing) |
| Operation Temp | -35℃~ +65℃ |
| Guarantee | |
| Product Guarantee | 2 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | N/A |
