KI-AXWZ106LM20A
2MP Cmos Sensor
2.8~12 mm Motorized
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
دوربین مداربسته کی دی تی مدل KI-AXWZ106LM20A
سایر برتری ها:
- بدنــه ضد آب و گـرد و غبـــار با درجه IP68
- بدنه ضد ضربه با استاندارد IK10
- ضد انفجار
- جنس بدنه از استیل
- قابلیت اتصال به سیستم فشار هوا و آب جهت خنک نگه داشتن بدنه
- جنس پایه از استیل 304 یا 316
- جنس شیشه از کوارتز مقاوم در برابر دما
- پشتیبـــانی از H.264 / H.265 / MJPEG
- پشتیبـــانـــی از ONVIF
- قابلیت WDR, BLC, HLC, Defog
- کیس این محصول بدون ماژول نیز قابل سفارش می باشد.
KI-AXWZ106LM20A

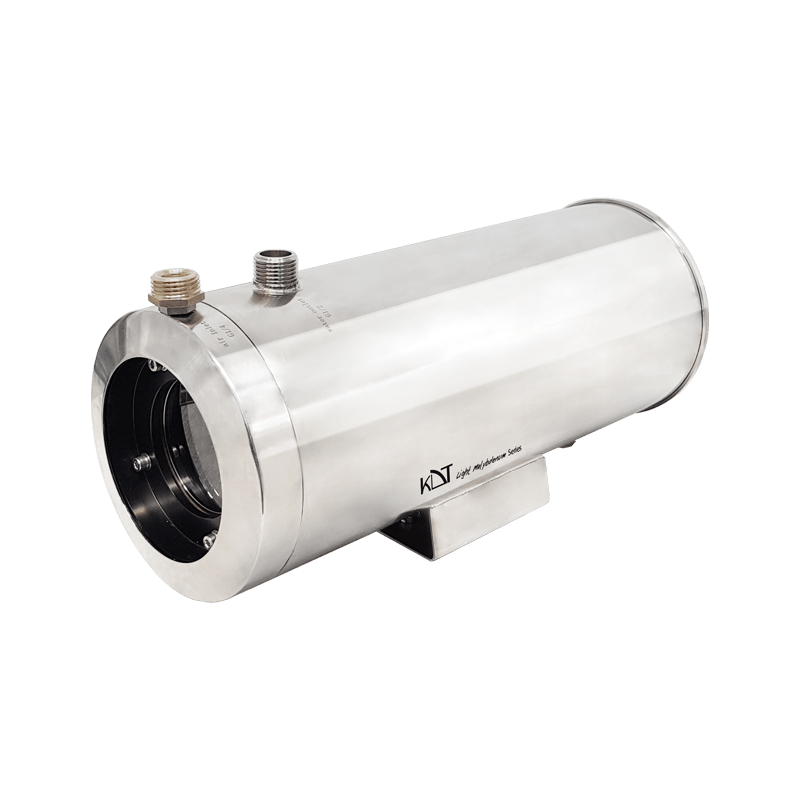

2MP Anti Explosion Network Camera
- 2MP Progressive scan Cmos Sensor (1/2.7”)
- 2.8~12 mm Motorized
- H.265, H.264, MJPEG
- 30fps@(1920×1080), 30fps@(1280×960), 30fps@(1280×720)
- Triple Stream (Code Rate: 32kb-8mb)
- Support PoE
- IP68, IK10, EX Protection, 3KV Surge Protection
شرایط گارانتی :
- دو سال گارانتی نقره ای بدون قید و شرط کی دی تی
- سه سال ضمانت پایداری کیفیت تصویر
- شامل: آبخوردگی، شکستگی، ضربه دیدگی، خسارت ناشی از صاعقه، زنگ زدگی، نوسانات برق، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 2MP Progressive scan Cmos Sensor (1/2.7″) |
| CPU | N/A |
| Lens Mount | N/A |
| Lens | 2.8~12 mm Motorized |
| Resolution | 1920×1080 (2MP) |
| Angle of View | H-FOV: 112°~28°, V-FOV: 60°~15°, D-FOV: 146°~33° |
| Available IR Range | N/A |
| D/N Filter | IR Cut Filter Switch (ICR) |
| Min illumination | Color: 0.01 Lux(AGC on) – B/W: 0.0 Lux(F1-6, AGC ON) |
| Night Vision | Color /IR |
| Web Viewer | Multi Browser |
| Smart Device | IOS, Android Phone & Tablet |
| Recording | |
| Recording | FTP, NVR, CMS |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | Motion Detection |
| Event Action | N/A |
| Event | N/A |
| Intelligent Function | N/A |
| Picture Adjust | |
| Picture Function | 120dB WDR, BLC, HLC, ROI, 2D/3D DNR |
| Shutter Speed | Manual (1/3 ~ 1/100-000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto, Color on, Color off |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Network | |
| Network | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Audio | N/A |
| Alarm | N/A |
| CVBS | N/A |
| Power | PoE LAN / Power IN |
| Control | 1 x RS485 (Optional) |
| Reset Button | N/A |
| Memory Slot | N/A |
| Video / Audio | |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711A, G.722.1, G.7726, MP2L2 |
| Frame Rate(60Hz) | 30fps@(1920×1080), 30fps@(1280×960), 30fps@(1280×720) |
| Transmission Stream | Triple Stream (Code Rate: 32kbps-8mbps) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Compatibility | Onvif Ver2-6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | Multi Browser |
| Smart Device | IOS, Android Phone & Tablet |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | N/A |
| Alarm | N/A |
| CVBS | N/A |
| Power | PoE LAN / Power IN |
| Control | 1 x RS485 (Optional) |
| Reset Button | N/A |
| Memory Slot | N/A |
| General | |
| Type | Camera Housing Box |
| IP Rating | IP68, IK10, EX Protection, 6KV Surge Protection |
| Housing | Explosion Proof |
| Cooling Water | YES / Circulate Running Water (Optional) |
| Cooling Air | N/A |
| Sun-Shield | YES / (Optional) |
| Bracket | YES / Stainless Steel 304 / 2.5 Kg / Wall or poll |
| EX Flexible Tube | YES / Explosion Proof Cable / 1500 mm |
| EX Cable Gland | YES / Explosion Proof Cable Gland |
| Power Supply | DC24V, AC24V, AC220V |
| POE Supply | IEEE802.3at/af-Max 30 Watt |
| Web Language | English |
| Dimension | 356*158 mm |
| Package Weight | 9 kg |
| Operation Humidity | Max Up to 95%RH(Non Condensing) |
| Operation Temp | -48℃~+80℃ |
| Guarantee | |
| Product Guarantee | 2 Years Silver Guarantee |
| MTBF | 100K hrs min- MIL-HDBK-217F (25°) |
| Certificates | Certificate Of Case, EX IIC T6 GB/ EXT D A21 IP68 T80C |
| Certificate Mark | CNEx16.2708 |
| Certificate Number | N/A |
