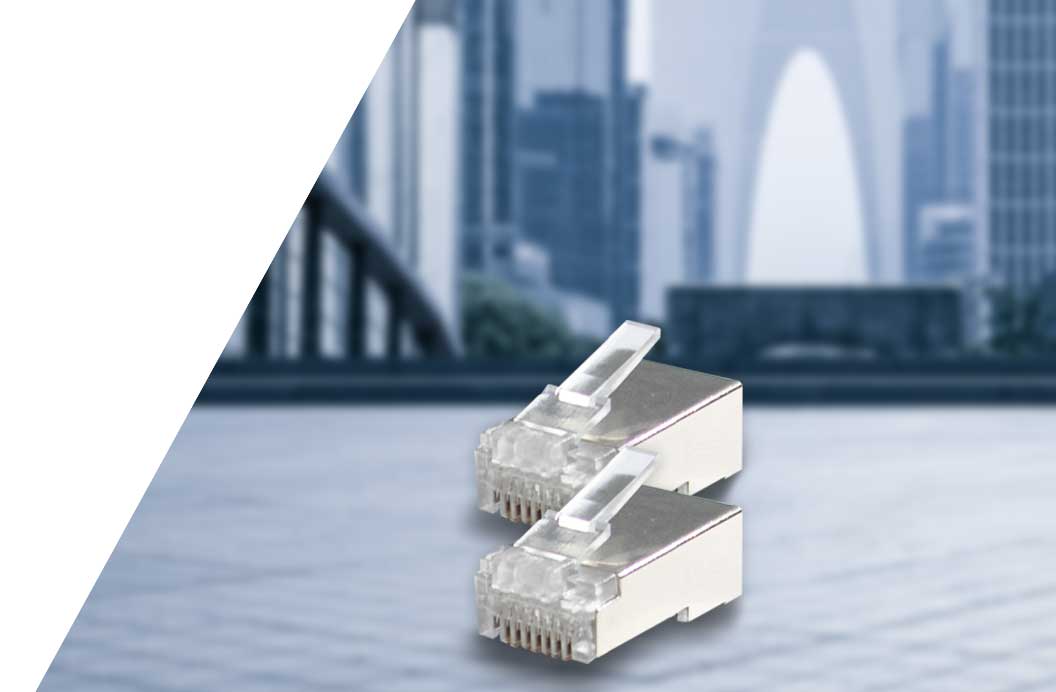

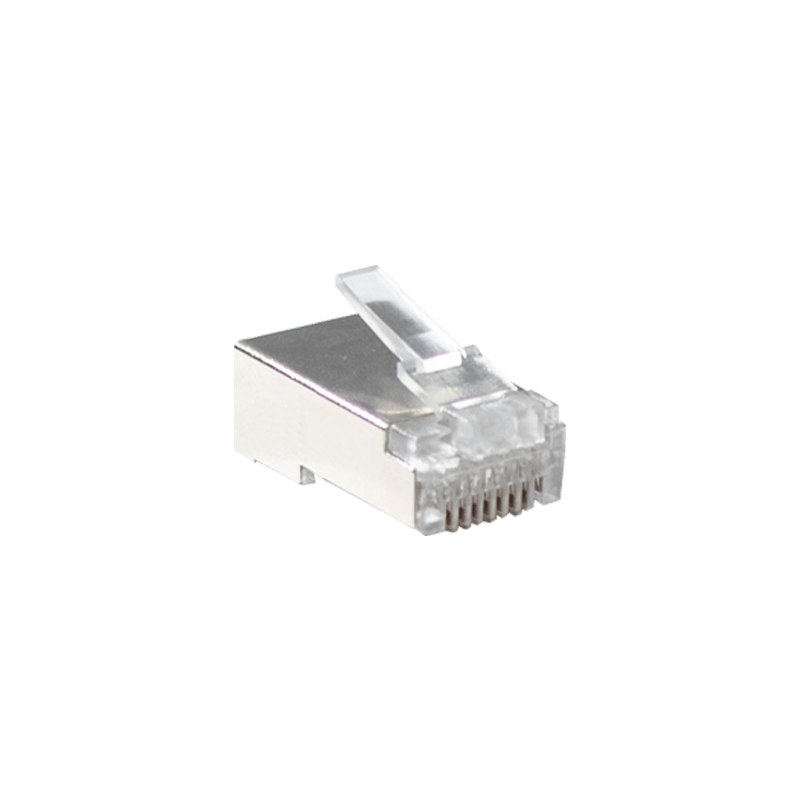

NS-3U 8P 6SFTP

SFTP Socket

Applicable Standards

 T568A / T568B

  Type

SFTP – Cat6

  Contact Resistance

20m ohms

Insulation Resistance

 100M ohms

  Temperature Rating (Min / Max)

-40/80 °C

  Weight

6.8g / pcs

  Wire Awg Min / Max (Solid / Stranded)

24AWG to 23AWG

  Conductor Diameter (Min/Max)

0.40/0.55mm

  Cord Diameter (Max)

1.5mm

  Finished

03MU Micro-Inch Gold Plating

  Material

Metal
